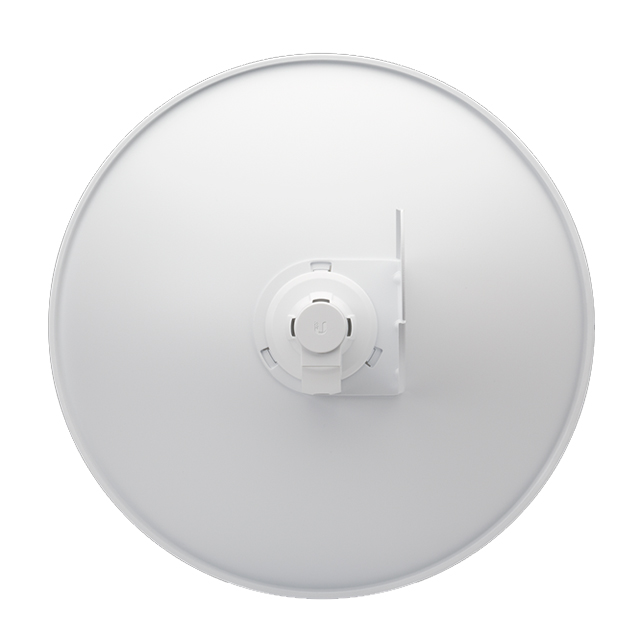

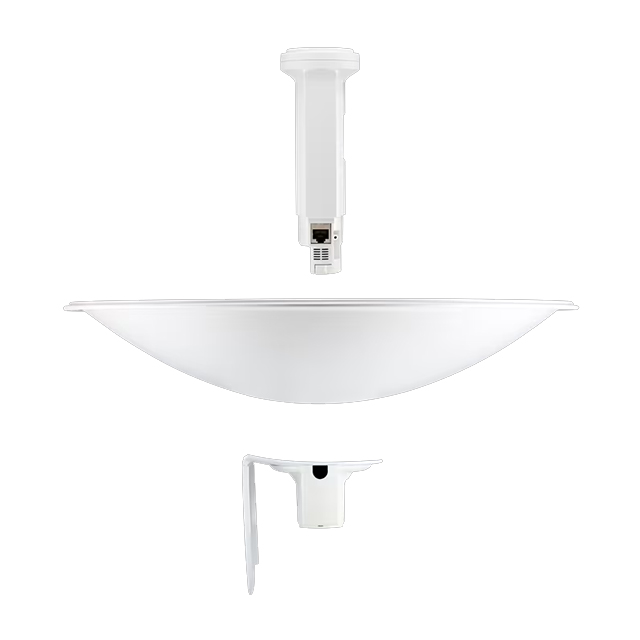

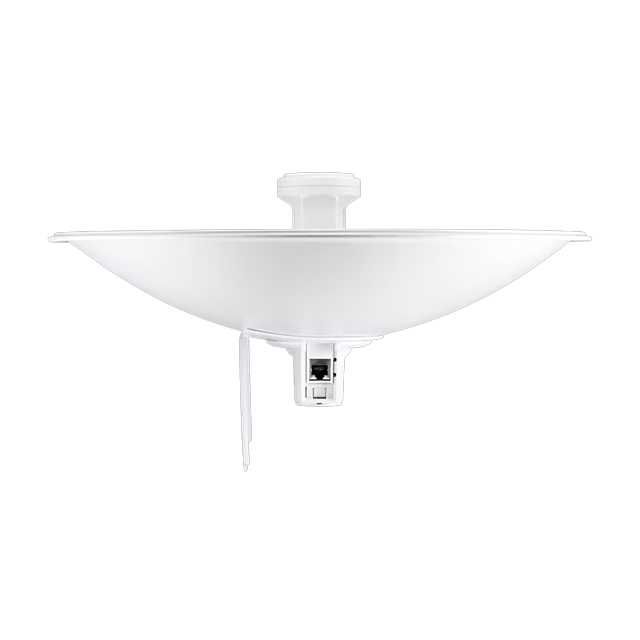

Ubiquiti AirMAX PowerBeam M5 400 5TGHZ Antenna

Ubiquiti AirMAX PowerBeam M5 400 5TGHZ Antenna

Spesifikasi :

Hardware

• Networking interface : (1) GbE RJ45 port
• Power method : Passive PoE 2-pair (Pairs 4, 5+; 7, 8 Return)
• Power supply : 24V, 0.5A gigabit PoE adapter (Included)
• Supported voltage range : 20–27V DC
• Max. power consumption : 8W
• Max. TX power : 26 dBm
• Gain : 25 dBi
• ESD/EMP protection : Air/contact: ± 24 kV
• LEDs : (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs : Software-adjustable to correspond to custom RSSI levels
• RoHS compliance : Yes
• Salt fog test : - IEC 68-2-11 (ASTM B117) - Equivalent: MIL-STD-810 G method 509.5
• Vibration test : IEC 68-2-6
• Temperature shock test : IEC 68-2-14
• UV test : - IEC 68-2-5 at 40° C (104° F) - Equivalent: ETS 300 019-1-4
• Wind-driven rain test : - ETS 300 019-1-4 - Equivalent: MIL-STD-810 G method 506.5
• Ambient operating temperature : -40 to 70° C (-40 to 158° F)
• Ambient operating humidity : 5 to 95% noncondensing

System

• Gain : 22 dBi
• Channel sizes : 5/8/10/20/30/40 MHz
• Polarization : Dual linear
• Operating Frequency (MHz) :  5170 - 5875 MHz

Mechanical

• Dimensions : 420 x 420 x 275 mm
• Enclosure material : UV-stabilized plastic
• Mounting : Pole mount kit (Included)
• Wind survivability : 200 km/h (125 mph)
• Wind loading : 342.5 N @ 200 km/h (77 lbf @ 125 mph)
