TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

TP-Link TL-SF1009P 9-Port Desktop Switch with 8-Port PoE+

HARDWARE FEATURES

• Interface

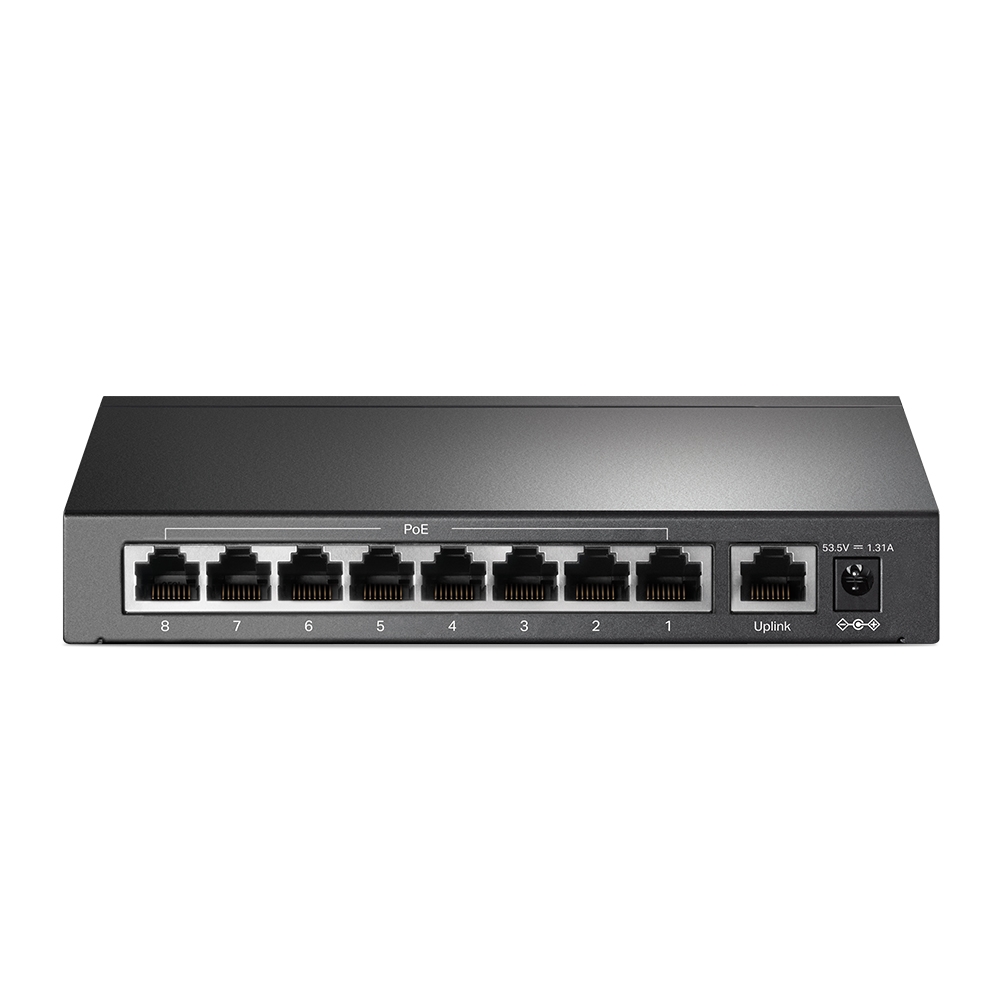

  • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity : Fanless
• Physical Security Lock : Yes
• External Power Supply : External Power Adapter (Output: 53.5VDC / 1.31A)
• Packet Forwarding Rate : 1.3392 Mpps
• PoE Ports (RJ45)
  • Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1–8
  • Power Supply: 65 W
• Mac Address Table : 2K
• Jumbo Frame : 2 KB
• Switching Capacity : 1.8 Gbps
• Dimensions ( W x D x H ) : 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
• Max Power Consumption
  • 3.6 (220/50 Hz. no PD connected)
  • 77.08 (220/50 Hz. with 65 W PD connected)
• Max Heat Dissipation
  • 12.28 BTU/h (no PD connected)
  • 262.84 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

• Advanced Features
  • Green Technology
  • 802.3X Flow Control
  • Back Pressure
  • 802.1p/DSCP QoS (for V7 and later version)
• MAC Address Table : 4K
• Transmission Method : Store and Forward

FEATURES

• 9× 10/100 Mbps RJ45 ports
• 8× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port

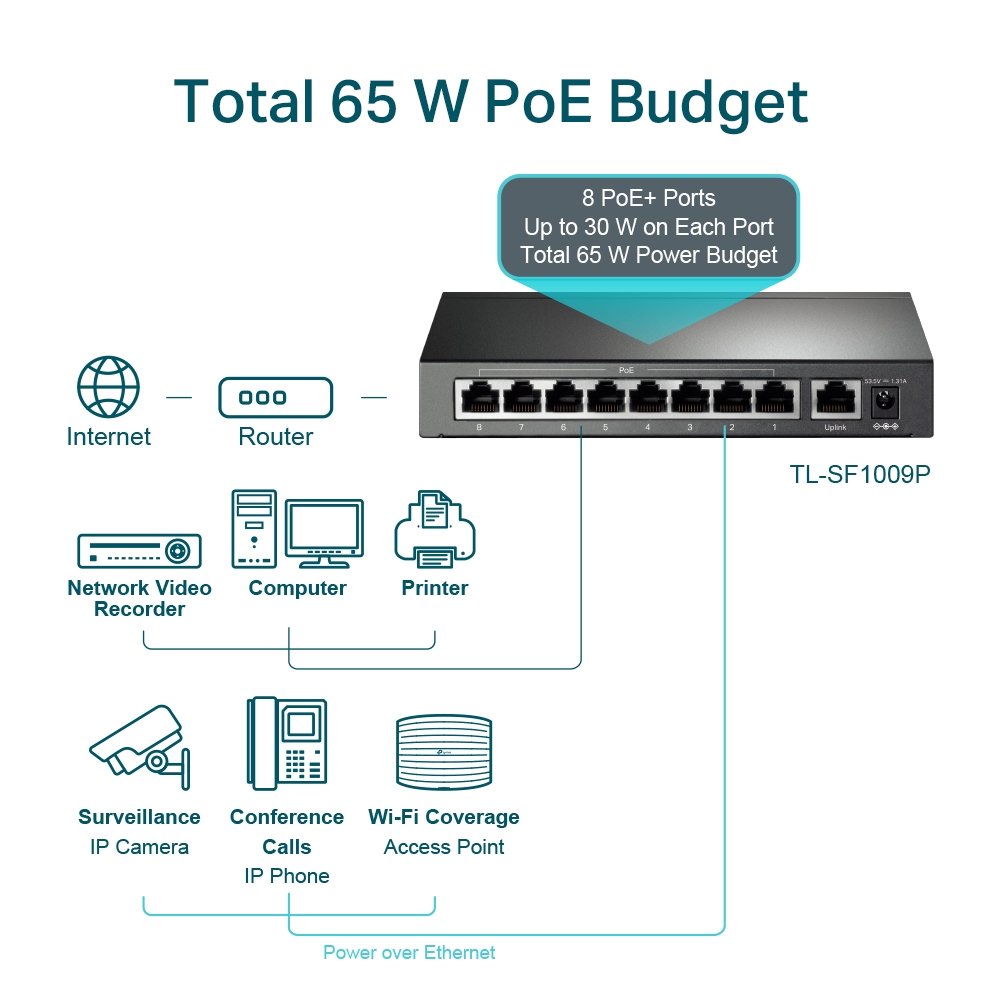

• Supports PoE Power up to 65 W for 8 PoE ports*

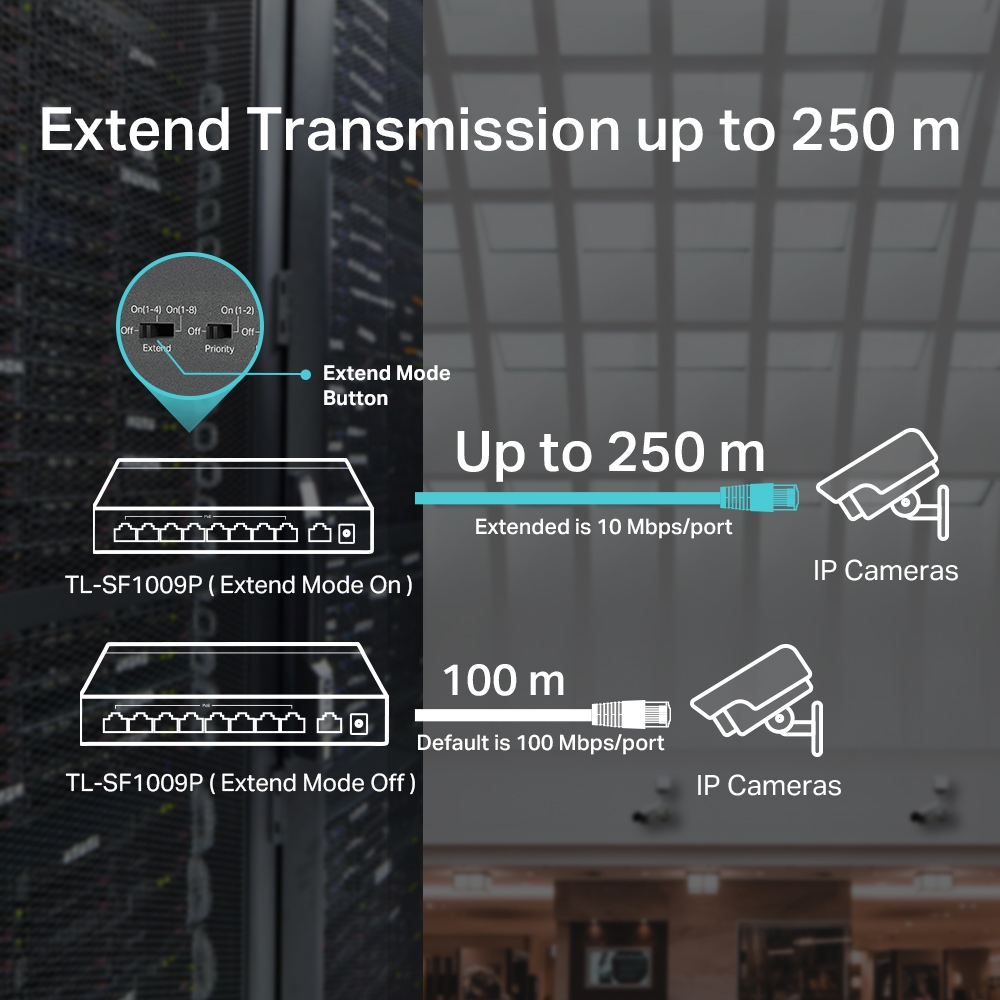

• Up to 250 m data and power transmitting range under Extend Mode**
