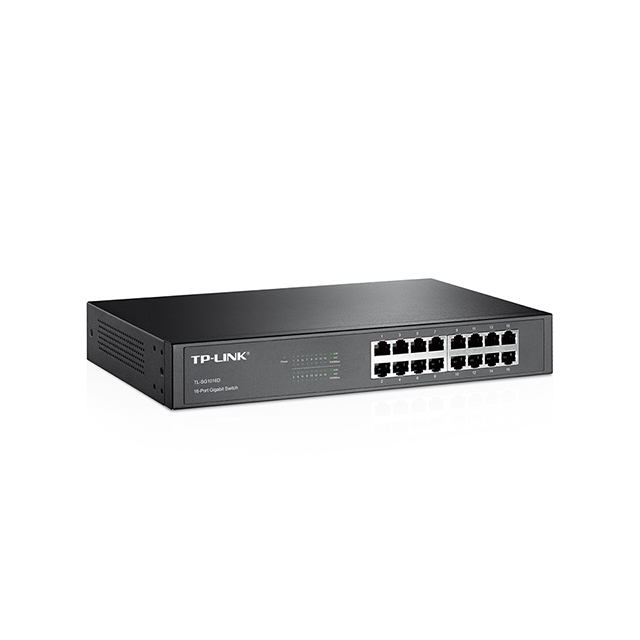

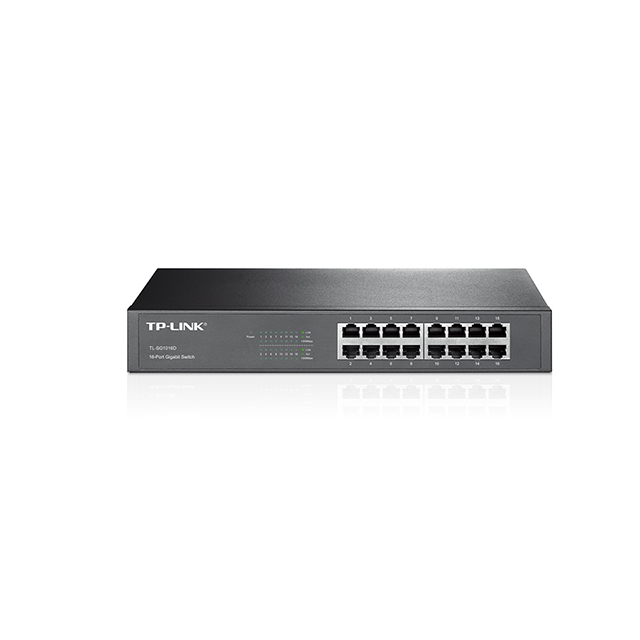

TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

HARDWARE FEATURES

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
• Interface: 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media

  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: No

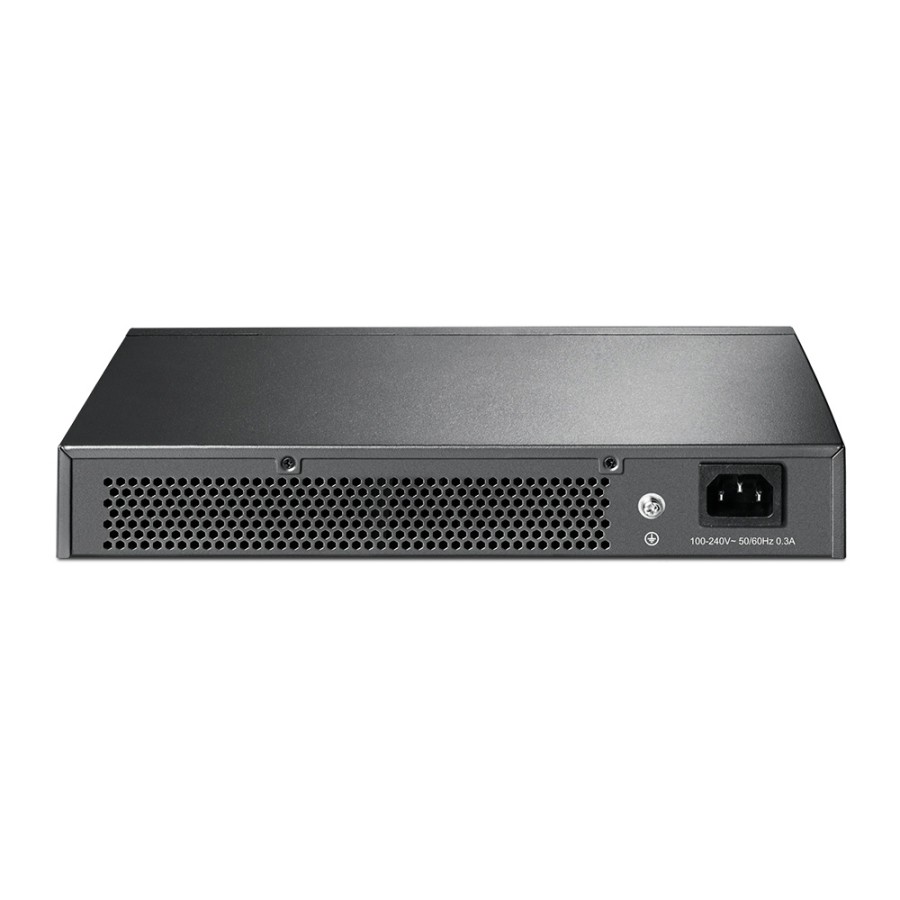

• Power Supply: 100-240VAC, 50/60Hz
• Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)
• Max. Power Consumption: 9.95W(220V/50Hz)
• Max. Heat Dissipation: 33.93BTU/h

PERFORMANCE

• Switching Capacity: 32Gbps
• Packet Forwarding Rate: 23.8Mpps
• MAC Address Table: 8K
• Advanced Features

  • Isolation Mode: Ports 1-14
  • Loop Prevention: Ports 1-16
• Jumbo Frame: 10KB
• Green Technology: Yes
• Transmission Method: Store-and-Forward

FEATURES

• 16 10/100/1000Mbps ports
• Innovative energy-efficient technology saves power consumption
• Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
• Plug & play design
